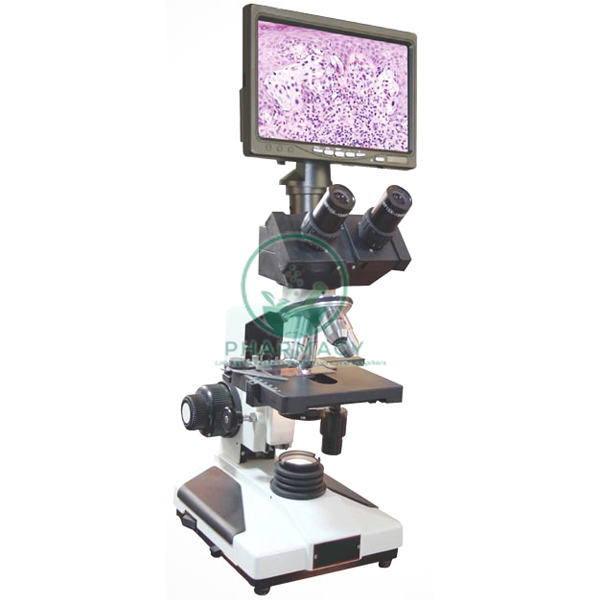

Trinocular Research Microscope With Digital Microscopy Screen Camera Manufacturer,Supplier and Exporter in India
Product Code : PHM-11372
Quick answer. Trinocular Research Microscope With Digital Microscopy Screen Camera — Condenser - Bright Field Condenser 1.25 N.A with iris diaphragm and swing out filter holder can be moved through rack and pinion knob. Supplied by Pharmacy Lab Equipment, Ambala.
Description
Inter-Pupiliary distance from 54 to 74mm and diopter adjustment are provided. Digital Microscopy Screen Camera: LCD Screen microscope camera makes a great user experience of microscopy itself by utilizing built-in camera as well as built-in screen. No USB cable, No driver or application software required. Just start this, the live image present in front of you immediately. This makes microscopy imaging easier, quicker and smarter.
Key features
- Low power consumption.
- 7" TFT LCD monitor.
- High-resolution picture.
- Comes with an IR remote controller.
- Brightness/contrast/color adjustable.
Technical specifications
| Specification | Value |
|---|---|
| Stage | - Stage Size 135x140mm. X-Y movement is controlled through low co-axial controls and cross movement of 50x70mm with fully graduated vernier scales. |
| DIN Semi Plan Objectives | 4x, 10x, 40x and 100x (Oil). |
| Eyepieces | WF 10x (paired). |
| Magnification | 40x to 1000x. |
| Observation Head | - Trinocular Observation head with 45° inclination, Rotatable through 360° and can be fixed in any direction. |
| Illumination | - Illumination through 6V 20W Halogen Lamp. |
| Packing | In full mould Styrofoam box. |
| Accessories | With vinyl cover, duster, cleaning brush, filter, immersion oil, operating manual. |
| Nosepiece | - Quadruple revolving nosepiece is provided with accurate centering and positive click stop for smooth accurate rotation. |
| Screen ratio 16 | 9/4:3 adjustable Full color LCD back light display. |
| Contrast Ratio | 400:1 |
Confirm the full specification, the standard accessories supplied and the warranty terms against your requirement before ordering.
