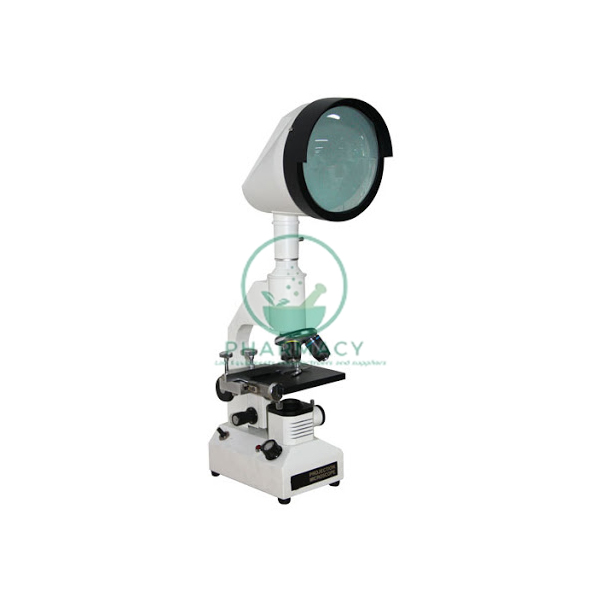

Student Doom Projection Microscope Manufacturer,Supplier and Exporter in India
Product Code : PHM-11356
Quick answer. Student Doom Projection Microscope — Illumination : 20W Halogen Bulb is provided with solid state variable light control knob, for adjusting the intensity of light, along with ON/OFF Switch. Supplied by Pharmacy Lab Equipment, Ambala.
Description
Lamp slots are provided for natural cooling of the illuminator. The Transformer is built in the base operates on 220V / 110V. The structure of microscopic specimens becomes visible to the naked eye by taking the projection on the screen, during observation and demonstration to a group of students. The microscopes are compact in design and can easily contrast and distortion free magnified images on a fine ground glass screen.
Technical specifications
| Specification | Value |
|---|---|
| Condenser | Fixed built-in lamp condenser N.A. 0.65. |
| Body | Monocular Fixed Straight Tube, Mechanical Tube length 160mm. |
| Nosepiece | Triple revolving nosepiece with positive centering & click stops. |
| Stage | Mechanical stage of 135x120mm. Low co-axial drive controls for X-Y movement and cross movement 50X75mm, fully graduated vernier scale. |
| Focussing | Separate knobs are provided for coarse and fine focussing. Coarse adjustment can be made through rack-pinion & fine movement by screw-lever mechanism. |
| Safety Device | Upper stopper for preventing accidental damage to slides. |
| Eyepieces | Huygenian 10x and 15x. |
| Accessories | Vinyl Cover, Duster, Cleaning Brush and spare bulb. |
| Packing | In Attache case with lock & key. |
| Screen | 150mm diameter round Glass Projection Screen is provided for relaxed fatigue-free viewing over long period, can be rotated through 360º on microscope tube. |
| Objectives | Achromatic 5x, 10x & 45x SL. |
Confirm the full specification, the standard accessories supplied and the warranty terms against your requirement before ordering.
