ICU Ventilator Manufacturer,Supplier and Exporter in India
Product Code : SLESPWMFC-11183

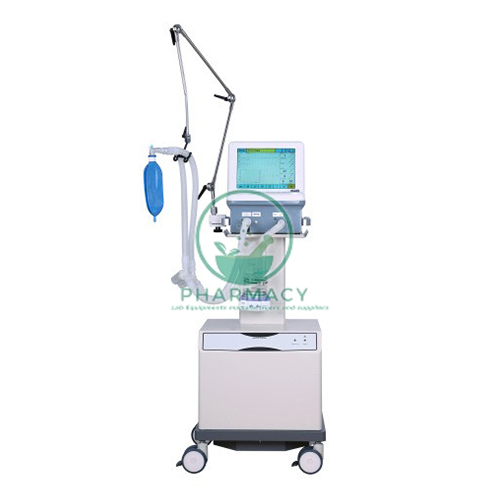

ICU Ventilator
An Optimal Combination of Invasive and Noninvasive
Ventilator :-
As noninvasive ventilation, it is used increasingly in a wide range of clinical situations, we offer a dual solution AN359 which combines the advantages of a flexible noninvasive ventilator with a full-featured invasive ventilator for the ICU
Ventilation Modes :-
• VCV(A/C), PCV(A/C), PRVC, SIMV(VCV)+PSV, SIMV(PCV)+PSV, SIMV(PRVC)+PSV, SPONT/CPAP +PSV, BIVENT +PSV, NIV/CPAP, NIV-T, NIV-S/T
Parameters :-
• Tidal Volume:20~2000 ml
• Respiration Rate:1~80 bpm
• Tinsp:0.2~9 s
• Tslope:0~2 s
• Tpause:0~4 s
• I:E Ratio:1:10~4:1
• FiO2: Pressure (-20~0 cmH2O, above PEEP), Flow (0.5~20 LPM)
• Trigger Sensitivity:0~35 cmH2O
PEEP:
• P support: 0~70 cmH2O
• Pinsp:5~70 cmH2OMonitoring
• Pressure Value: Ppeak, Pplat, Pmean, Pmin, PEEP
• Volume / Flow Value: Vti, Vte, MV, MVspont
• Time Value:ftotal,fspont, I:E
• Real Time Curves: Pressure-Time, Flow-Time, Volume-Time waveforms, Pressure-Volume, Volume-Flow, Flow-Pressure loops
• Gas Monitoring: FiO2, ETCO2
• Calculated Values: Compliance(C), Resistance(R) MVleak, RSBI, WOB, PEEPi
Alarm:-
• Paw high/low MVe high/low Circuit disconnnect
• FiO2 high/low Inspiration/Expiratory tidal volume low
• High Respiration Rate Apnea AC Failure Nebulizer On
• Low Battery Air /O2 supply down High/Low PEEP
• Leakage out of range Occlusion
Technical Data :-
• Screen:12〞TFT color touch screen (detachable)
• Supply Gas:O2, 0.28~0.6 MPa
• Power Supply:AC100~240 V, 50 Hz/60 Hz
• Communication Interface: RS-232 Port, Nurse call Port, Ethernet Port
• Dimension (Width x Depth x Height):322 mm x 375 mm x 366 mm (Main Unit), 547 mm x 675 mm x 950 mm (Cart)
• Weight:12.5 kg (Main Unit), 25 kg (Cart)
