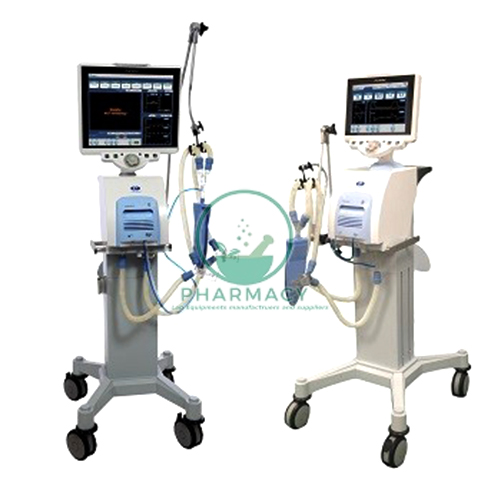

Medical ICU Ventilator Manufacturer,Supplier and Exporter in India
Product Code : SLESPWMFC-11184
Quick answer. Medical ICU Ventilator — Medical ICU Ventilator. Supplied by Pharmacy Lab Equipment, Ambala.
Key features
- I:E ratio:1:10 to 4:1
Technical specifications
| Specification | Value |
|---|---|
| Electrial Interface | Nurse call, USB, NET, RS232, V GA |
| Interface Type | |
| Main patient outlet | ISO 22M/15F |
| Oxygen inlet | DISS or NIST male |
| Display | |
| Display size | 15.6 in diagonal |
| Display type | Active matrix color TFT LCD |
| Display resolution | SVGA resolution, 1366 x 768 |
| Fully Electronic Control | |
| Ventilation type | Blower |
| Ventilation modes | A/C-VCV, A/CPCV, A/C-PRVC, SIMV-VC, SIMV-PC, SIMV-PRVC, BIPAP, APRV, CPAP, CPAP-VG. |
| Special Functions | Manual breath, O2 therapy, standby, screen-lock, inspiratory hold, expiratory hold, sigh, ATC, PCVR, PPS, Compliance, p0.1, calibrate, nebulizer, O2 suction. |
| Patient types | Adult/Pediatric/Neonate |
| Patient height | Adjustable |
| Monitoring | |
| Real-time waveforms | Paw, Flow, Volume, EtCO2, SPO2 |
| Optional | CO2, SPO2 (related parameters) |
| Loops | P-V, V-Flow, Flow- P |
| Trends | 1s, 5s,1min,10min, 30min, 60min |
| Tidal volume | 5 to 2000mL |
| PEEP/CPAP | 0 to 30 cmH2O |
| Oxygen | 21 to 100% |
| Inspiratory time (TI) | 0.2 to 5 s |
| Flow trigger | 0.2 to 15 l/min |
| Pressure trigger | -0.5 to -20cmH2O |
| Pressure control | 5 to 90 cmH2O, added to PEEP/CPAP |
| Pressure support | 0 to 90 cmH2O, added to PEEP/ CPAP |
| Pressure ramp | 0 to 2s |
| Expiratory trigger sensitivity (ETS) | OFF, 5 to 90 % of inspiratory peak flow |
| Peak flow Spontaneous | > 210 L/min |
| Electrical and gas supplies | |
| Input voltage | 100 to 120 V ~ ±10 %, 50 / 60 Hz AC or 24 VDC±10 % |
| Power consumption | 50 W typical |
| Protection class | Class I |
| Backup battery | 2 batteries(5200mAh each)/ hot swappable |
| Oxygen supply | 280 to 600 kPa (41 to 87 psi), 120 L / min |
| Low pressure | oxygen ≤15 L / min, max. 600 hPa for low pressure |
| Alarms | |
| Operator-adjustable | Low/high minute volume, low/high pressure, low/high tidal volume, low/high rate, apnea time, low/high oxygen |
| Optional | low/high CO2, low/ high SPO2 |
| Special alarms | Oxygen concentration, disconnection, loss of PEEP, exhalation obstruction, flow sensor, power supply batteries, gas supply |
| Loudness Adjustable | 1 to 9 |
| Event log | Storage and display of up to 1000 events with date and time stamp |
| Physical dimensions | |
| Weight | ∠ 45.3 kg |
| Dimensions(Width x Height x Depth) | Approx. 600x402x415mm |
Confirm the full specification, the standard accessories supplied and the warranty terms against your requirement before ordering.
