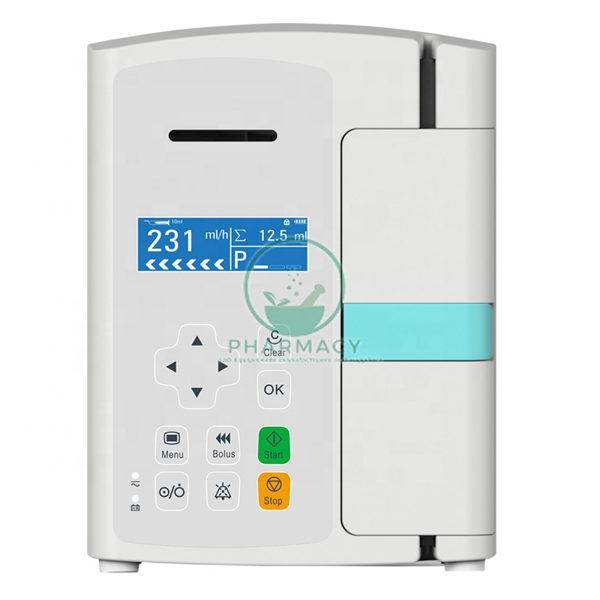

Infusion Pump Manufacturer,Supplier and Exporter in India
Product Code : PHIE-11802
|
Technical Features |
|
|
Code |
PHIE-11802 |
|
Infusion set |
disposals; diameters Ø 3.5-4.5 mm, thickness 0.8-1.2 mm |
|
infusion mode |
Rate mode |
|
Bolus |
600 ml/h |
|
Flow rate |
0.10-1500 ml/h |
|
Volume Limit |
0.1~9999 ml |
|
Accuracy |
< ± 5% |
|
KVO rate |
0.5 ml/h |
|
Occlusion |
Low 150-125 mmHg (20k Pa): Medium 525± 125 mmHg (70 kPa)
High 900±180 mmHg (120kPa) |
|
Air bubble detection |
Single bubble detection 50, 100, 250, 500 800l μl
Accumulated bubble detection: 0.1-4.0ml/h, adjustable |
|
Titration |
Yes, increment is 0.1 ml/h |
|
AC power |
100-240V (50/60Hz, 0.4-0.14A) |
|
DC power |
10-16V (2.25-1.5A) |
|
Battery type |
Lithium |
|
Battery operation time |
>4 hours @ 25 ml/h |
|
Charging time |
<6 hours @100% |
|
Classification |
CF, Class I |
|
IP Grade |
IP 34 |
|
Temperature |
5~40°C for operating, -20~60°C for storage |
|
Humidity |
15~95% for operating, 10~95% for storage |
|
Air pressure |
57~106 kPa for operating, 50~106kPa for storage |
|
Weight |
<1.6 kg (not including clamp) |
|
Dimension |
146 x 193 x 95 mm |
