Gearmatic Hydraulic OT Table With Five Section Translucent Top Manufacturer,Supplier and Exporter in India
Product Code : PHOT-11485

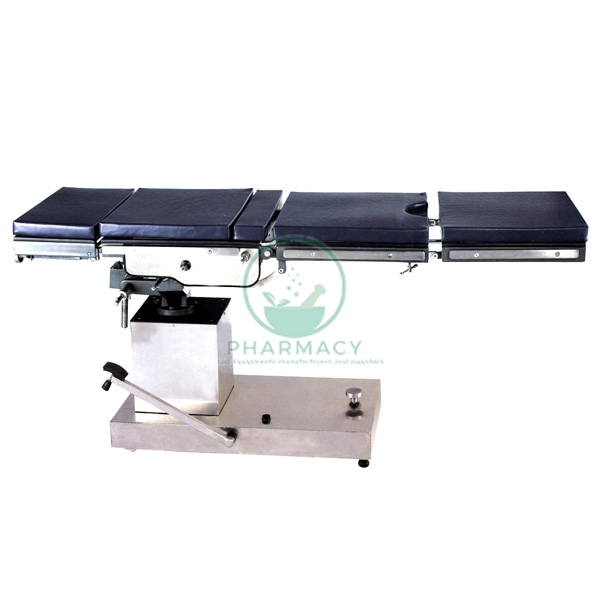

Quick answer. Gearmatic Hydraulic OT Table With Five Section Translucent Top — The top segments are translucent for X-rays and enable taking pictures and monitoring a patient with a C-arm. Supplied by Pharmacy Lab Equipment, Ambala.
Description
The positions in five section table top are adjusted manually by mechanical drive. It's safe and robust mechanism prevents breakdown during an operation. Specialized for orthopaedic, neurology, ERCP, laparoscopy and urology. Key Structure: With regular human strength, up-down table position can be fixed by stepping foot pedal downward. The base is eccentric for trouble-free C-ARM movements. Furnished with hard, robust stainless steel shell which provides the sense of dirt free & sanitized operations. Trendelenburg, lateral tilt, flex-reflex, chair operated manually. Smooth height adjustment of the table can be achieved by using the foot pedal.
Key features
- Leg & Head section are interchangeable.
Technical specifications
| Specification | Value |
|---|---|
| Technical Constraints | |
| Kidney Elevator | 150 mm |
| Back Rest (up / down) | 80º / 25º |
| Leg Rest (up / down) | 15º / 90º |
| Head Rest (up / down) | 20º / 60º |
| Patient Weight Capacity | 150 kgs (330 lbs) |
| Top Dimension | L 1905 x W 533 mm |
| Height Adjustment | 750 mm - 1000 mm |
| Trendelenburg / Reverse | 30º / 25º |
| Lateral Tilt | 20º / 20º |
| Standard Accessories | |
| Anaesthetic screen | 1 pc. |
| Shoulder supports | 2 pcs. |
| Lateral supports | 2 pcs. |
| Arm rest (S.S.top) | 1 pc. |
| Knee crutches | 2 pcs. |
Confirm the full specification, the standard accessories supplied and the warranty terms against your requirement before ordering.
