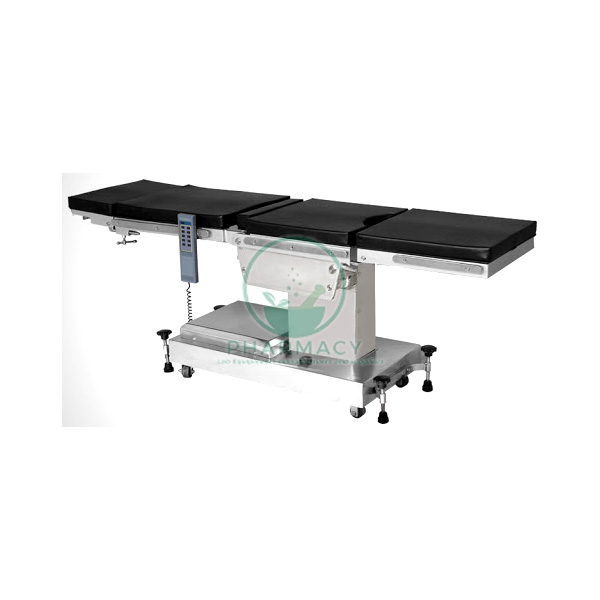

Electro - Mechanical Operating Table Manufacturer,Supplier and Exporter in India
Product Code : PHOT-11502
Quick answer. Electro - Mechanical Operating Table — An innovative range of C-arm compatible multi-purpose Electric Operating Tables equipped with intuitive intelligence and designed with minute articulations for ergonomic convenience, imaging capabilities and attachable accessories to enhance comfort and precision for the surgical team. Supplied by Pharmacy Lab Equipment, Ambala.
Description
Five section eccentrically positioned radio-translucent table top without cross members facilitates C-arm imaging. The table top is made of specially developed radio-translucent material for excellent fluoroscopic capability. Operating positions i.e. Height adjustment, Trendelenburg, Reverse Trendelenburg, Lateral Tilt and Back Section are precisely and smoothly controlled by handheld Remote using Linear Actuators from LINAK A/S, Denmark. The Head and Leg Sections are removable and interchangeable, capacitating a single table's use in varied surgical procedures. These are manually operated by means of ratchet system. Built-in Kidney Elevator - Jack-type, manually operated. State-of-the-art maintenance free Lifting System with hi-precision bearings. Non-corrosive SS304 Grade Stainless Steel base and cylinder covers for easy cleaning and hygiene. Complete with SS304 Grade Stainless Steel Side-rails, Clamps and Standard Accessories.
Key features
- Technical Specifications :
- Standard Accessories :
Technical specifications
| Specification | Value |
|---|---|
| Table top size | 1880 x 500 mm |
| Minimum height (without mattress) | 735 mm |
| Maximum height (without mattress) | 985 mm |
| Trendelenburg / Reverse Trendelenburg | 20º / 20º |
| Lateral Tilt (Left/Right) | 20º / 20º |
| Back section adjustment | +70º / -25º |
| Head section adjustment | +40º / -90º |
| Leg section adjustment | +15º / -90º |
| Load capacity | 150 Kgs |
| Power supply | 220V AC - 50Hz |
| 'L' shaped Anaesthetic Screen | One pc |
| Padded Shoulder Support | One pair |
| Padded Lateral Support | One pair |
| Radio-translucent Armboard with pad | Two pcs |
| Wristlet | One pair |
| Goepel Knee Crutch with straps | One pair |
| PU Foam Mattresst | One set |
Confirm the full specification, the standard accessories supplied and the warranty terms against your requirement before ordering.
